Products > Modules

Shingled Cell

Monofacial & Bi-facial

Black Frame
Shingeld_BF
Mono (60)
TERRA 5K-44SCS
400~430W
Monocrystalline silicon cell
Application in Retail Projects
Data Sheet
Parameters
Orientation
340 (34x10)
Size
1719 × 1140 × 30mm
Weight
21.0 kg
Glass
3.2mm toughened glass
Frame
Black anodized alumin. alloy
Junction Box
IP68, 3 diodes
Cable
4.0mm2, 1200mm
Connector
MC4 Compatible
Wind/Snow Load
2400Pa / 5400Pa
Logo_Panels
Full Black
Shingled_FB
Mono (60)
TERRA 5K-44SCF
400~425W
Monocrystalline silicon cell
Application in Retail Projects
Data Sheet
Parameters
Orientation
340 (34x10)
Size
1719 × 1140 × 30mm
Weight
21.0 kg
Glass
3.2mm toughened glass
Frame
Black anodized alumin. alloy
Junction Box
IP68, 3 diodes
Cable
4.0mm2, 1200mm
Connector
MC4 Compatible
Wind/Snow Load
2400Pa / 5400Pa
Logo_Panels

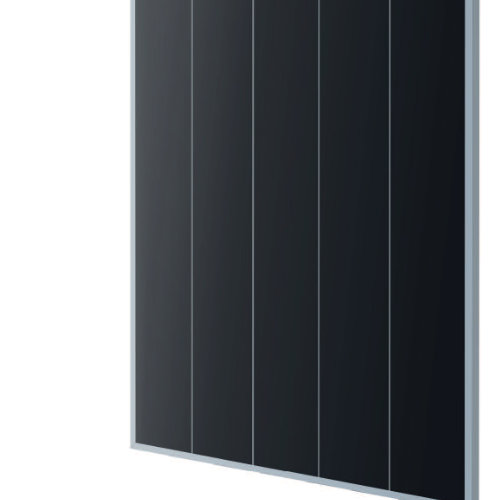

Shingeld_SF3
Mono (58)
TW 535~560PMB6
5C-58-SC
Monocrystalline silicon cell
Commercial Projects
Data Sheet
Parameters
Orientation
345 (69x5)
Size
2384 × 1096 × 35mm
Weight
28.3 kg
Glass
3.2mm tempered glass
Frame
Anodized aluminum alloy
Junction Box
IP68, 3 diodes
Cable
4.0mm2, 1200mm
Connector
MC4 Compatible
Wind/Snow Load
2400Pa / 5400Pa
Logo_Panels
Shingeld_SF1
Bifacial (58)
TW 530~555PMB6
5C-58-SDC
Monocrystalline silicon cell
Commercial Projects
Data Sheet
Parameters
Orientation
345 (69x5)
Size
2384 × 1096 × 35mm
Weight
32.5 kg
Glass
2.0mm tempered glass
Frame
Anodized aluminum alloy
Junction Box
IP68, 3 diodes
Cable
4.0mm2, 1200mm
Connector
MC4 Compatible
Wind/Snow Load
2400Pa / 5400Pa
Logo_Panels
Shingeld_SF2
Bifacial (69)
TW 635~675PMB6
G12-69-SDC
Monocrystalline silicon cell
Ground Power Station
Data Sheet
Parameters
Orientation
414 (69x6)
Size
2384 × 1303 × 35mm
Weight
38.5 kg
Glass
2.0mm tempered glass
Frame
Anodized aluminum alloy
Junction Box
IP68, 3 diodes
Cable
4.0mm2, 1200mm
Connector
MC4 Compatible
Wind/Snow Load
2400Pa / 5400Pa
Logo_Panels
